ROOF PIPE SUPPORTS

SS8 RL low profile header
Back to Pipe Supports
  • SS8 Rl Low Profile Modular Pipe Supports - gas pipes up to 2.5

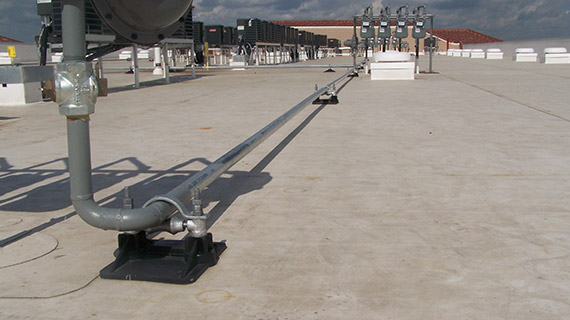

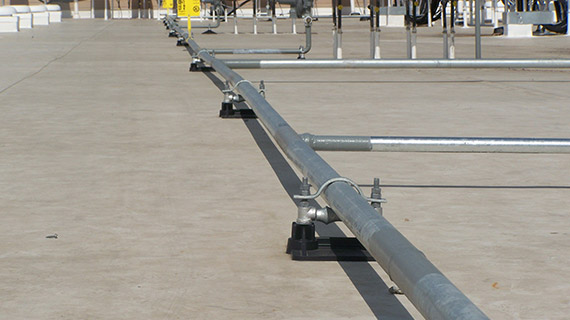

  • SS8 RL low profile gas pipe support

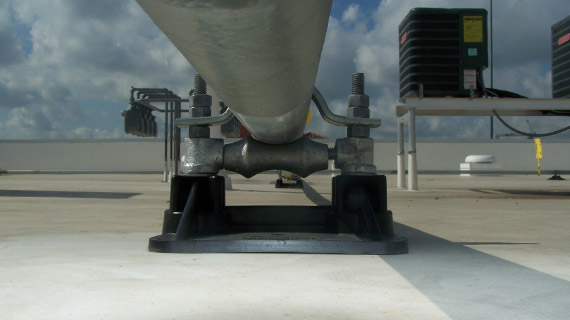

  • SS8 pipe support with roller

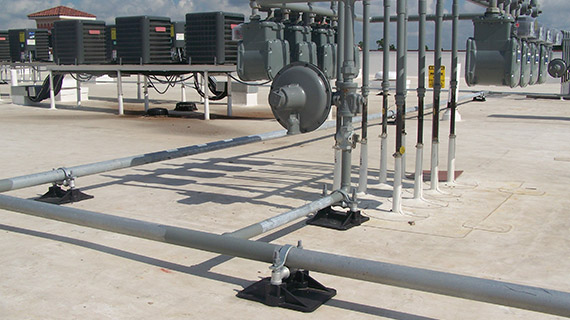

  • SS8 RL low profile pipe support for roof
  • SS8 pipe support

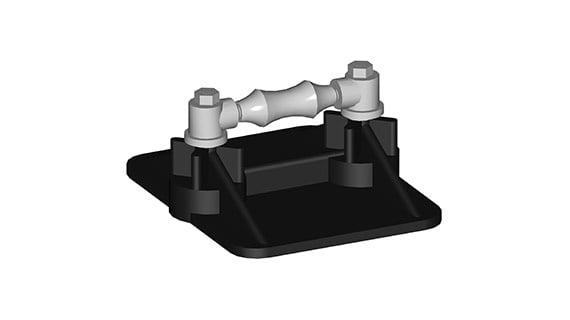

SS8-RL Low Profile Modular Pipe Supports

for pipe sizes up to 2-1/2″ OD

Product information

The SS8 with Roller Low Profile modular pipe supports for gas pipes up to 2 ½” OD, set at 3 3/4” above the roof surface, and is non-adjustable.

REQUEST PRICING
Resources

View

InstallationDesign & Quote

Downloads

PDF2-D

Technical Resources

Spec Sheet (PDF)Product Specification (PDF) Pipe Supports Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

SS8-RL Installation
New Pipe
  1. Layout isolation pads, (provided by contractor), according to the design and layout.
  2. Layout SS8-RL supports per spacing specifications or PHP layout.
  3. Run pipe on roller.
Retro-fit
  1. Lift pipe, (enough to remove existing support).
  2. Clean area where new support is to be placed.
  3. Run pipe on roller.
  4. Place ISO pad, (provided by contractor).
  5. Put SS8-RL support on pad.
  6. Lower pipe onto roller.
