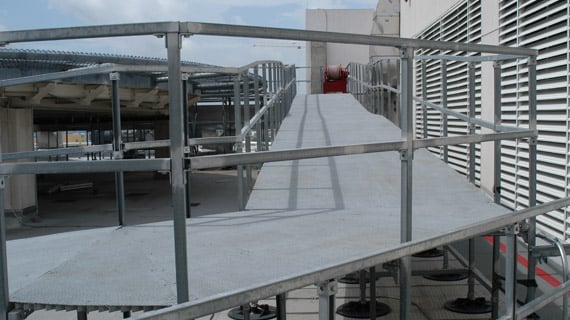

  • Industrial Ramp Support for Rooftops
  • ramp on the roof
  • ramp for the roof
  • rooftop ramp
  • lifted rooftop ramp

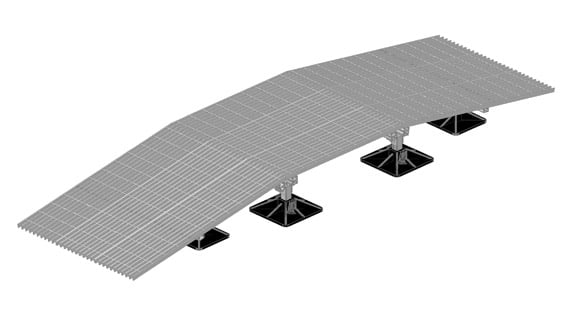

Industrial Ramp Support

Product information

The PHP Industrial Ramp Support provides a safe means of access by crossing over any rooftop obstruction such as piping, ducting, or equipment.

REQUEST PRICING
Resources

View

Installation Design & Quote

Downloads

PDF 2-D

Technical Resources

Spec Sheet (PDF) Product Specification (PDF)Ramps Product Flyer (PDF)

Available in High Wind and Seismic Applications
PHP System/Design

Ramp Installation
  1. Layout isolation pads according to footprint of ramp.
  2. Place bases on top of isolation pads.
  3. Insert legs of substructures into bases.
  4. Place grating for ramp landing on 1-5/8” Channel of each set of substructures.
  5. Attach grating to 1-3/4” B-B channel with hold-down clip.
  6. Set intermediate handrails on intermediate brackets and attach with 1” bolt and 1/2″ spring nut.
  7. Set top handrail on top brackets and attach with 1” bolt and 1/2” spring nut.
  8. Tighten all nuts, bolts and hold-downs.
Ramp Installation
